Annealing Furnace

Features
Max. gas cooling pressure:	2 bar
Furnace Temperature Uniformity:	≤±5℃
Ultimate Vacuum Level:	5X10⁻⁴ Pa
Leak-up Rate:	≤0.5 Pa/h
High-vacuum configuration for clean heat treatment
Customizable horizontal / vertical structure available
Compatible with various charging capacity requirements

Inquire Now

Product Overview

This vacuum annealing furnace series is available in horizontal and vertical configurations. Designed specifically for superalloys, refractory metals, magnetic materials and other materials, it supports bright annealing, vacuum brazing, sintering, annealing aging and other processes, suitable for both laboratory research and mass production scenarios.

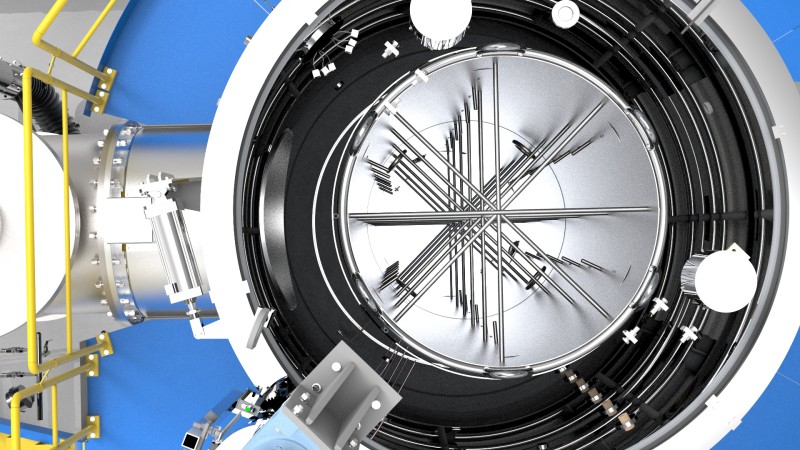

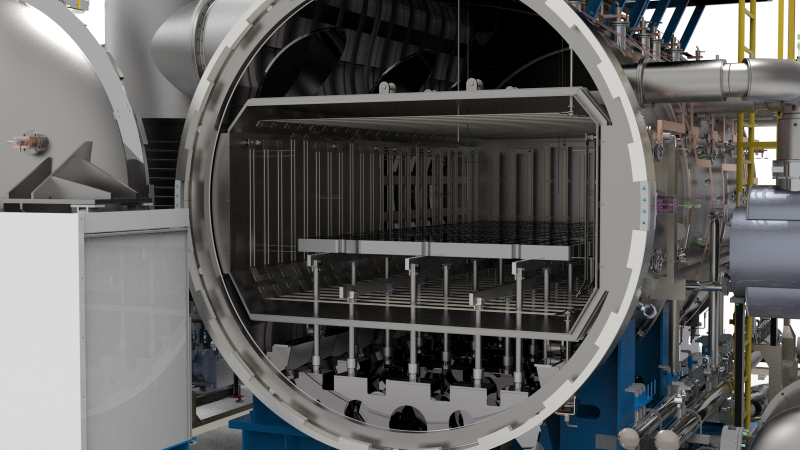

The horizontal HZT series is equipped with sliding/hinged furnace doors, nickel-chromium strip heating elements and dedicated conveying mechanisms, ideal for batch processing of rod-shaped workpieces. The vertical HZTL series adopts lift-type doors, lead screw transmission and pressurized gas cooling below 2 bar to optimize temperature field uniformity. Each unit is fitted with pneumatic locking for furnace cover, ultra-clean nickel-chromium heating elements and stainless steel heat shields, ensuring reliable sealing performance and extended service life.

All models come standard with an intelligent fully automatic control system composed of PLC and touch screen, which enables editing, storage and recall of process recipes, real-time equipment operation monitoring, as well as query and printing of process & fault reports. Multiple safety interlocks and fault alarms are built in, and a remote diagnostic system is optional to enable efficient maintenance and rapid after-sales service. The system reduces manual labor intensity and improves the standardization level of production.

Technical Advantages

1. Clean Vacuum Environment, No Oxidation & Decarburization

Equipped with high-vacuum pumping system and pneumatic locking tight sealing structure for the furnace cover, the furnace strictly controls the oxygen concentration inside the chamber. Workpieces maintain bright metallic surfaces after heat treatment without subsequent polishing, improving product yield and cutting machining costs.
2. Uniform Temperature Field & Precise Temperature Control

Designed with multi-zone independent temperature control and optimized heating structure, combined with nickel-chromium heating elements and stainless steel heat shields, it achieves furnace temperature uniformity ≤±5°C. This ensures even heating and stable hardness of workpieces, guaranteeing consistency during mass production.
3. Uniform Gas Cooling & Controllable Deformation

It adopts convection gas cooling with a maximum pressure of 2 bar and dedicated flow guide air ducts. Vertical models are equipped with lead screw transmission for auxiliary temperature control to deliver mild cooling, which reduces workpiece deformation and cracking, making it ideal for mass production of precision components.
4. Stable, Reliable & Easy to Maintain

Reasonably configured core components together with multiple safety interlock protection and fault alarm systems enable stable operation for continuous production. Maintenance procedures are simplified with low maintenance costs.
5. Eco-friendly & Standard-compliant

No discharge of three wastes (waste gas, wastewater, solid waste) during operation with low noise. The equipment meets environmental safety standards and production specifications for high-end workshops to facilitate green manufacturing.
6. Intelligent & Easy Operation

Controlled by PLC plus touch screen, the system supports recipe editing, automatic operation and data traceability, reducing labor intensity and raising the standardization level of production.

Application Scope

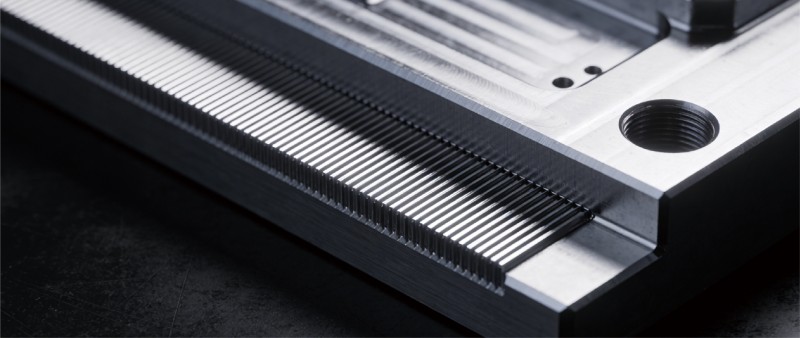

1. Mold Manufacturing Industry

Applied to vacuum quenching and quenching & tempering treatment of cold-work die steel, hot-work die steel and plastic mold steel. It is suitable for injection molds, die-casting molds, stamping molds, precision cavity molds, etc., to improve the hardness, wear resistance and service life of molds.

2. Cutting Tools & Precision Tool Industry

For high-speed steel cutters, alloy cutting tools, drill bits, milling cutters, taps, gear cutters, precision measuring tools and wear-resistant parts, it guarantees cutting edge quality, dimensional accuracy and surface finish.

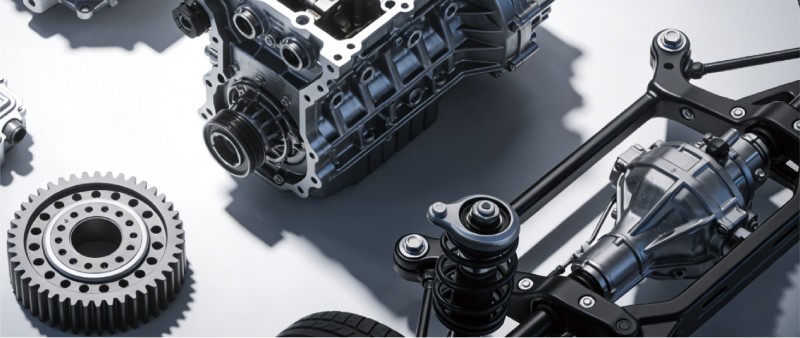

3. Auto & New Energy Vehicle Components

Gearbox gears, shafts, synchronizers, clutch parts, transmission structural parts, motor iron cores and high-precision chassis components, meeting heat treatment requirements of mass production, high consistency and low deformation.

4. Aerospace & High-end Equipment

Vacuum heat treatment for precision parts, fasteners and structural components made of superalloys, titanium alloys, stainless steel and high-strength structural steel, satisfying stringent standards of high cleanliness, high reliability and uniform performance.

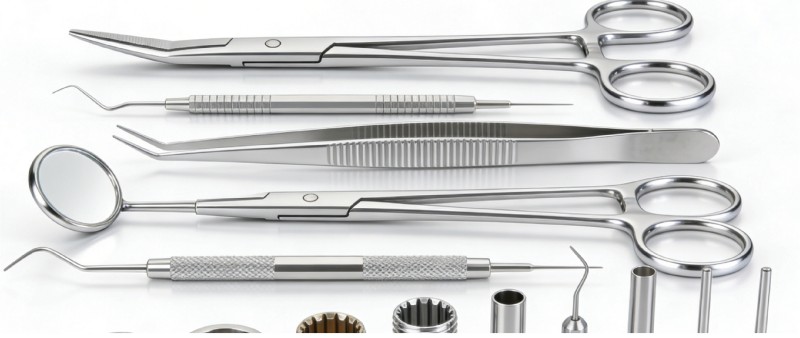

5. Medical Device Industry

Medical stainless steel & titanium alloy surgical instruments, implant devices and precision medical fittings, ensuring clean, contamination-free and bright workpiece surfaces with stable biocompatibility.

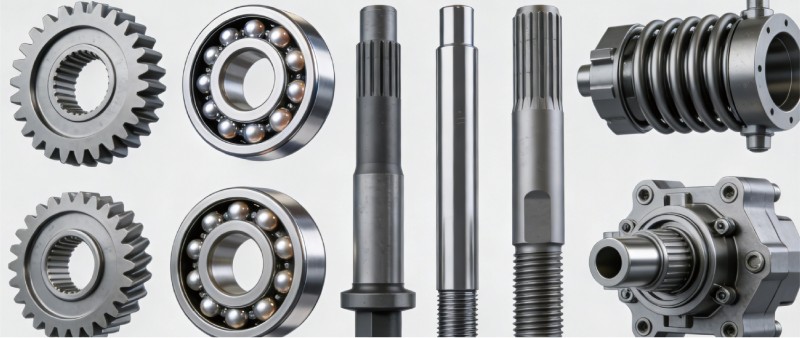

6. Precision Machinery & Basic Components

Precision gears, bearings, shafts, elastic elements, hydraulic parts, fasteners and other components, applicable to precision machinery products with strict requirements on deformation, dimensional accuracy and surface quality.

Product Specifications

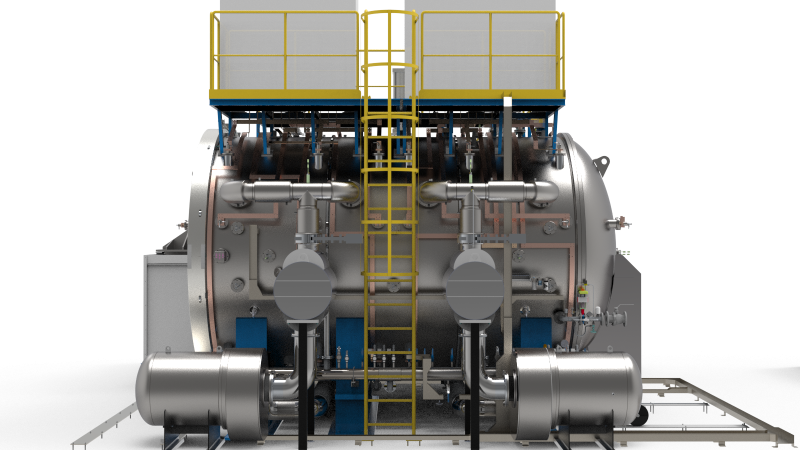

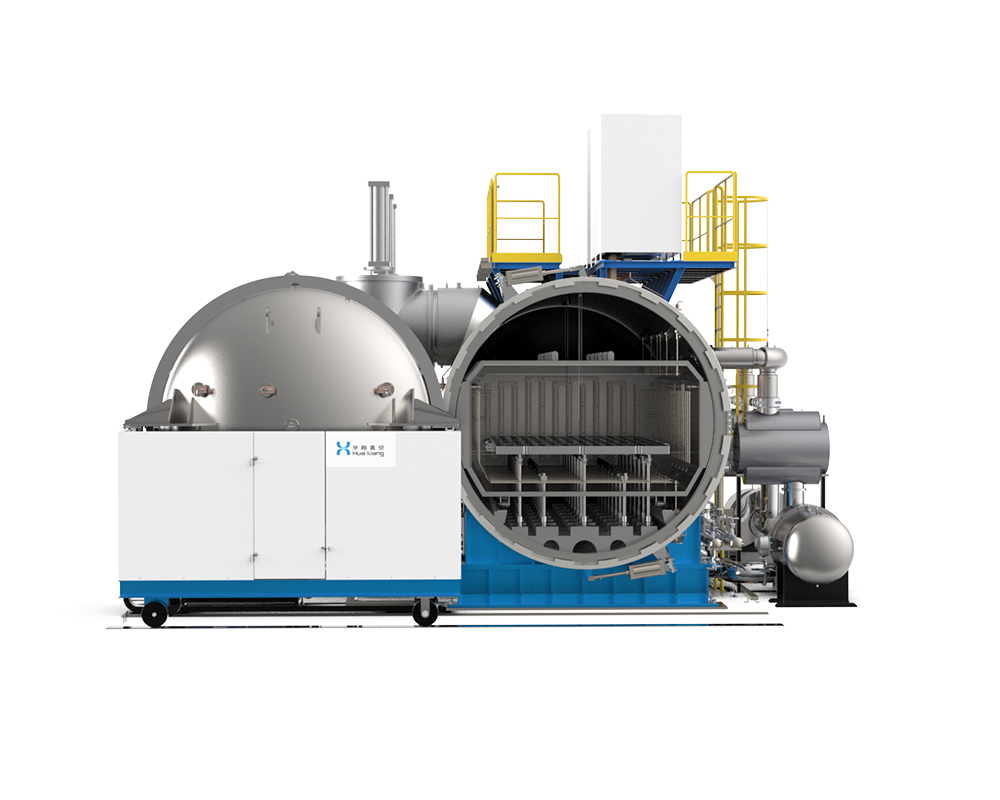

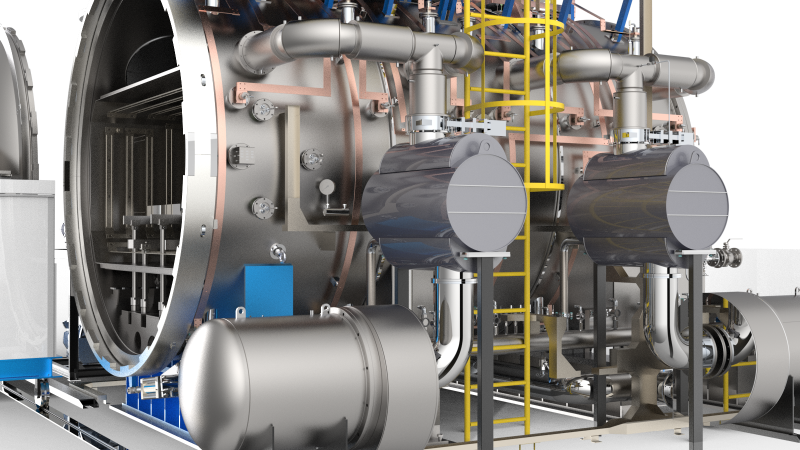

Horizontal Pressurized Gas-cooled Vacuum Annealing Furnace (HZT Series)

Parameter Item	Unit	HZT-80	HZT-100	HZT-150	HZT-200
Effective Heating Chamber Size	mm	600×400×400	750×500×500	900×600×600	1200×800×800
Max Charging Capacity	kg	200	300	500	1000
Heating Power	kW	80	100	150	200
Maximum Working Temperature	℃	1100
Temperature Uniformity	℃	≤±5
Ultimate Vacuum Degree	Pa	4×10⁻¹ / 5×10⁻³ / 8×10⁻⁴ / 5×10⁻⁴
Pressure Rise Rate	Pa/h	≤0.5
Max Gas Quenching Pressure	bar	＜2

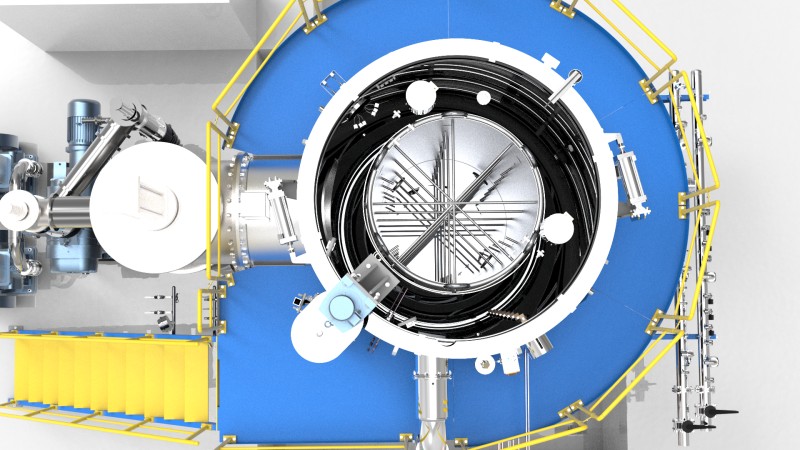

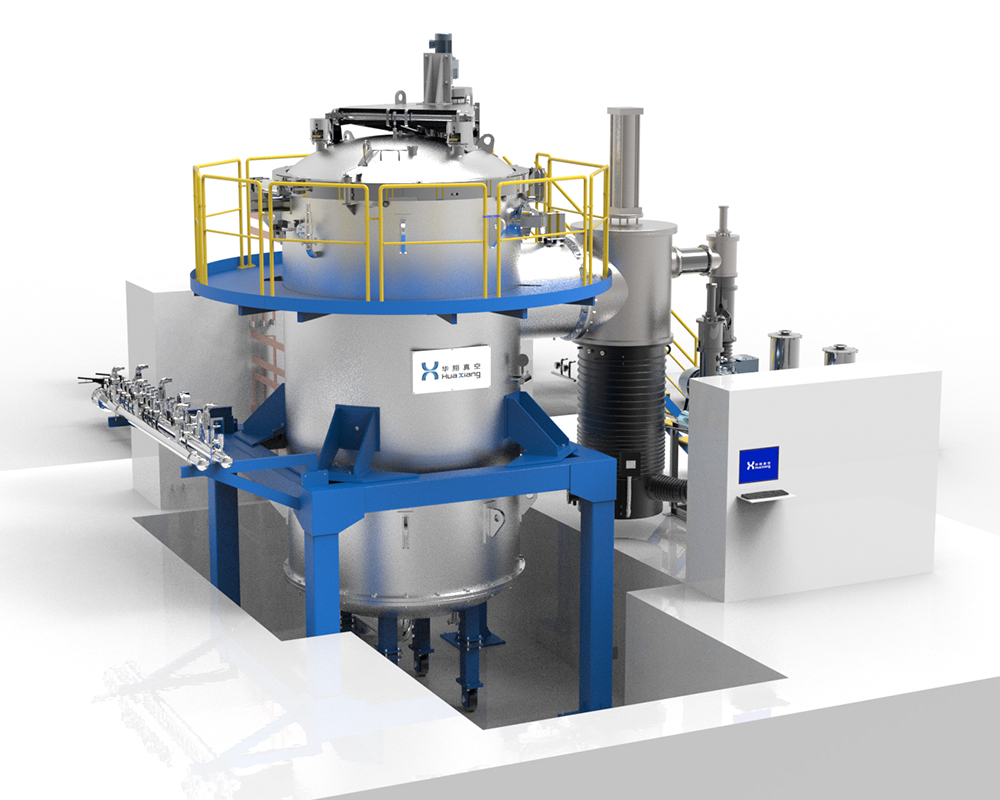

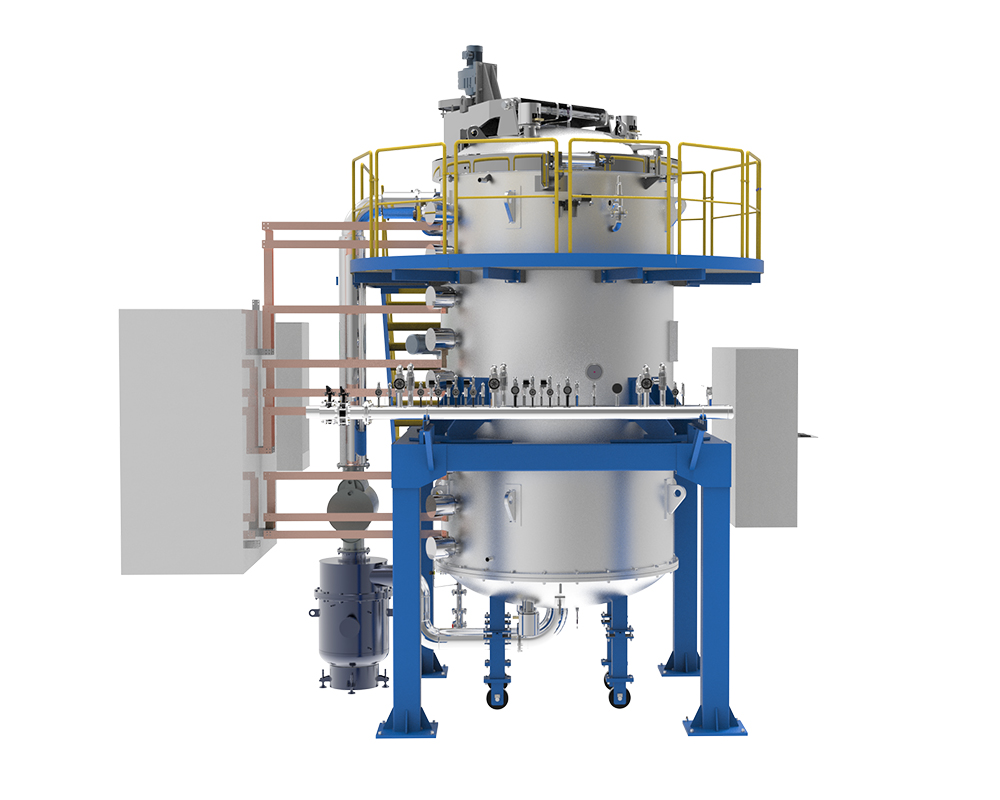

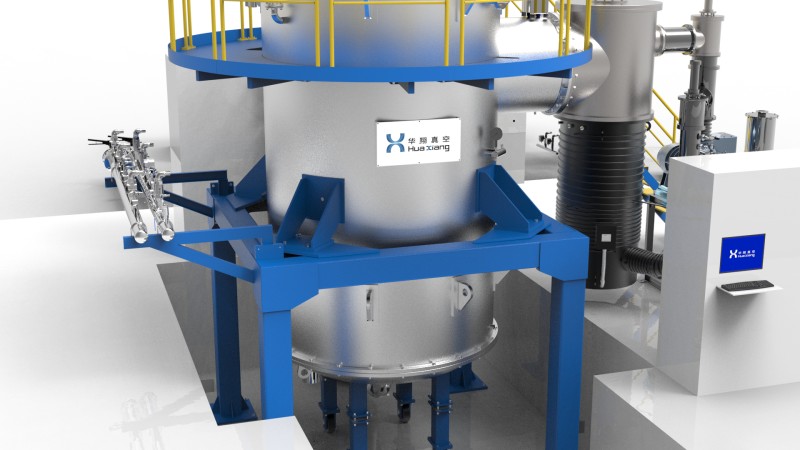

Vertical Well-type Vacuum Annealing Furnace (HZTL Series)

Parameter Item	Unit	HZTL-80	HZTL-150	HZTL-160	HZTL-200
Effective Heating Zone Size (Dia. × Height)	mm	Φ500×600	Φ800×900	Φ800×1000	Φ1100×1200
Loading Capacity	kg	200	500	500	800
Heating Power	kW	80	150	160	200
Maximum Temperature	℃	1100
Temperature Uniformity	℃	≤±5
Ultimate Vacuum	Pa	4×10⁻¹ / 5×10⁻³ / 8×10⁻⁴ / 5×10⁻⁴
Pressure Rise Rate	Pa/h	≤0.5
Maximum Gas Cooling Pressure	bar	＜2

Custom Non-Standard Solutions

Structural Customization

Custom design of horizontal / vertical (well-type) furnace body, furnace door structure and transmission conveying mechanism.
Parameter Customization

Core parameters including heating zone dimensions, loading capacity, heating power, vacuum level and gas cooling pressure can be adjusted on demand.
Process Customization

Optimize heating, cooling and vacuum systems for special materials such as superalloys and titanium alloys, and develop exclusive heat treatment processes.
Auxiliary Matching Customization

Customized workshop adaptation solutions for control system expansion, tooling fixtures, protective gas supporting systems, etc.
