Aluminum Alloy Brazing Furnace

Features
Max. working temperature	≤750°C
Furnace Temperature Uniformity	≤±3℃
Ultimate Vacuum Level	3X10⁻⁴ Pa
Leak-up Rate	≤0.16 Pa/h
Maximum gas cooling pressure	<2 bar

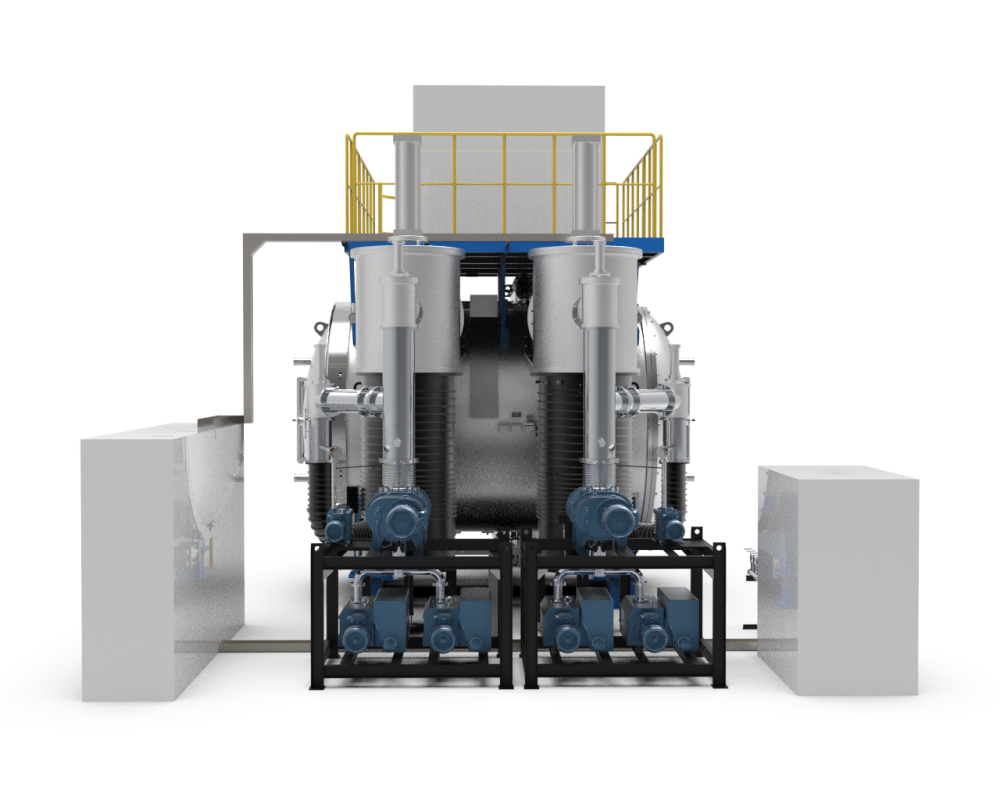

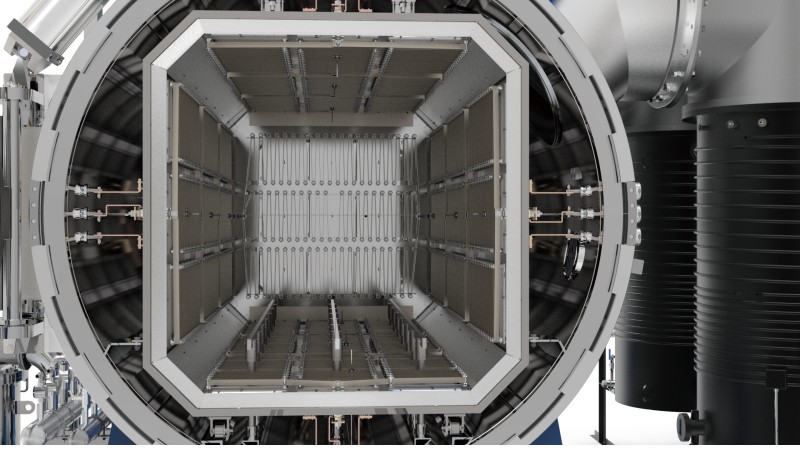

Multi-zone synchronous temperature control for uniform thermal field
Special water-cooled electrodes to avoid magnesium deposition
High-efficiency condensing filtration system
Main horizontal structure, oversized dimensions customizable
Fully automatic control, suitable for continuous production

Inquire Now

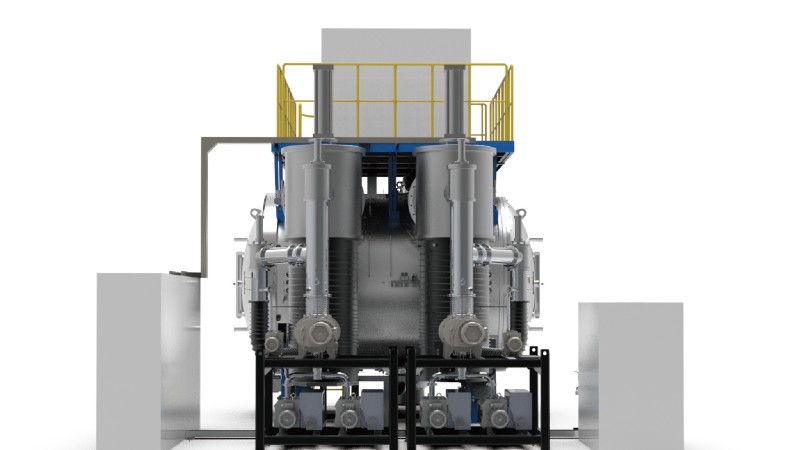

Product Overview

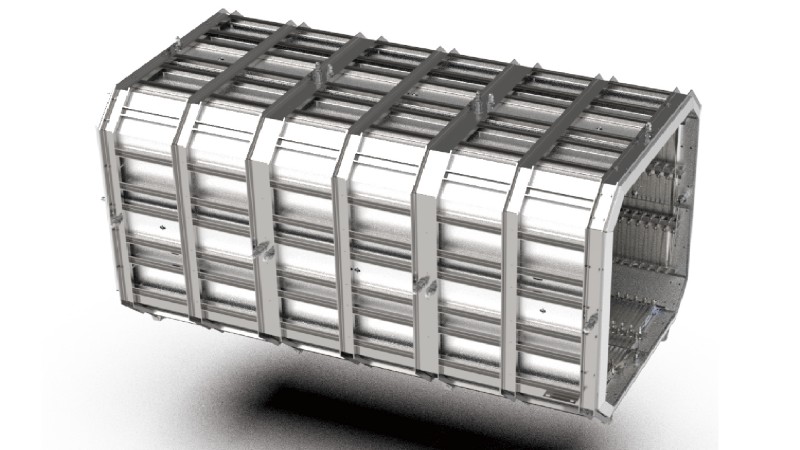

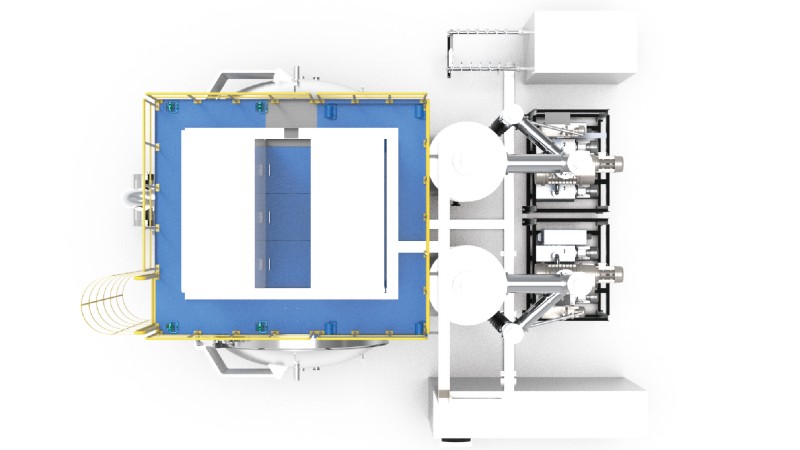

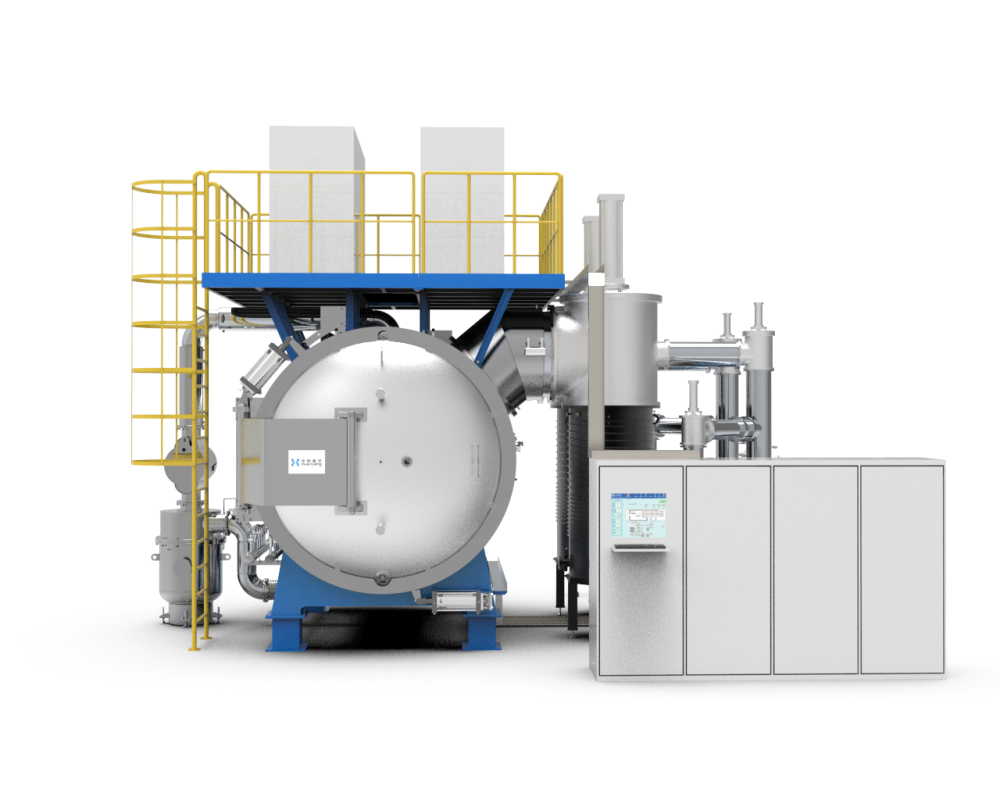

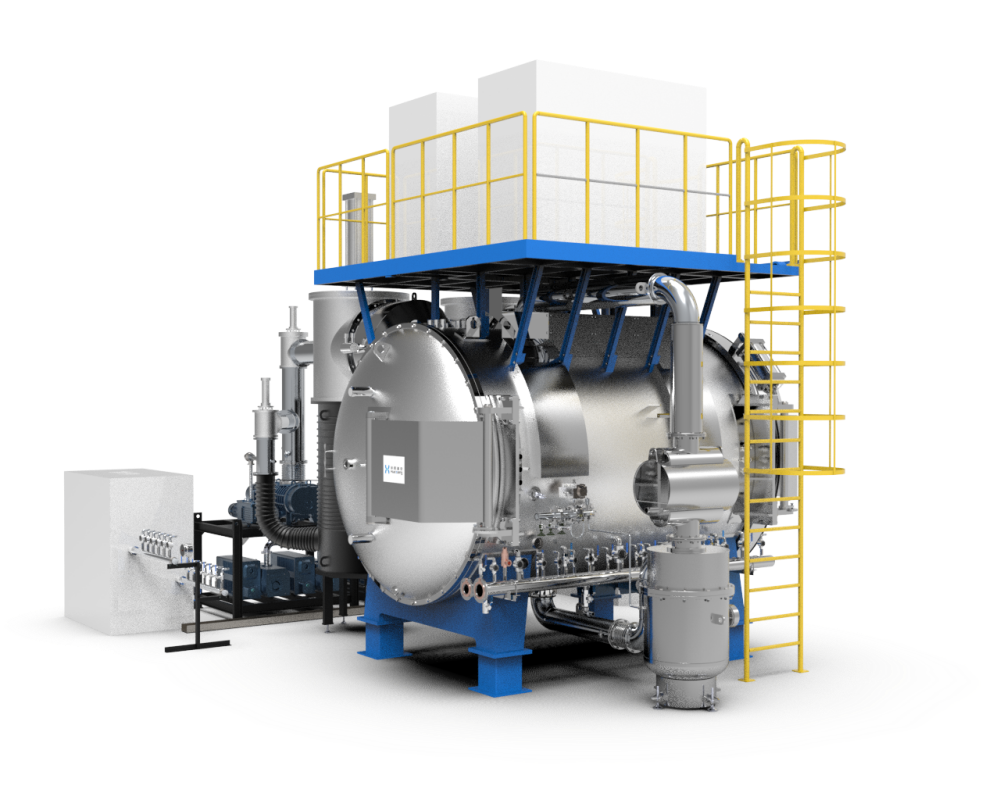

The HZHA series vacuum aluminum brazing furnace is dedicated brazing equipment independently developed by Huaxiang Vacuum exclusively for aluminum alloy materials. It specializes in oxidation-free aluminum-to-aluminum brazing, and is widely adopted for mass production of core components such as heat exchangers, radiators, condenser plates and sealed cavities in automotive, air separation equipment, shipbuilding, home appliances, compressors and other industries.

The furnace adopts multi-zone synchronous temperature control, optimized heating structure, as well as specialized short-circuit prevention and anti-contamination designs. It delivers excellent temperature uniformity and vacuum tightness, forming full, leak-free and high-strength brazed joints. It can satisfy full-scenario brazing requirements ranging from tiny components to large aerospace-grade aluminum structural parts.

Standardly equipped with an intelligent PLC & touchscreen control system, the unit supports fully automatic operation, data logging, fault alarming and safety interlock functions. It can be integrated into automated production lines to greatly boost production efficiency and product consistency.

Technical Advantages

1. Special Brazing Process for Aluminum Alloys

Developed specifically for flux-free vacuum aluminum-to-aluminum brazing, this process matches the phase transformation of aluminum alloys and melting characteristics of brazing filler metals. It features precise temperature control and steady heating, delivering oxidation-free, discoloration-free performance without intergranular corrosion. After brazing, joints are dense, high-strength and reliably sealed, guaranteeing long-term operational stability of core components.
2. Ultra-Uniform & High-Precision Thermal Field

Combining multi-zone independent temperature control and optimized heating layout, the furnace achieves temperature uniformity within ±3°C. It drastically minimizes temperature deviation for large workpieces, multi-layer heat exchangers and long-cavity structural parts, ensuring high consistency, low deformation and stable yield rate for mass-produced products.
3. High-Vacuum & High-Sealing System

Equipped with a high-vacuum sealed chamber and low-leakage sealing construction, the furnace reaches an ultimate vacuum of \(3\times10^{-4}\ \text{Pa}\) with a pressure rise rate as low as 0.16 Pa/h. It creates a clean, oxidation-free and impurity-free brazing atmosphere to satisfy stringent requirements for high-reliability zero-leakage components used in aerospace, automotive, air separation equipment and other fields.
4. Anti-Contamination & Anti-Short-Circuit Design

Fitted with a dedicated condensing filtration system and anti-deposition water-cooled electrodes, the system efficiently captures magnesium vapor and volatile substances generated during brazing. It eliminates risks of chamber contamination, pipeline blockage and electrode short-circuit, delivering stable continuous production, extended maintenance cycles and longer service life for the equipment.
5. High Compatibility with Automated Production

Standardly equipped with an intelligent PLC & touchscreen control system, the furnace supports fully automatic process execution, data logging, fault diagnosis and safety interlock. It can connect with automatic feeding devices, multi-station linkage units and integrated production lines to realize efficient continuous manufacturing, cut labor costs and raise production capacity.

Application Scope

1. Computing Power Infrastructure

Liquid cooling plates for AI server computing centers, GPU cooling cold plates, heat exchange modules for computing hubs, and high-density cooling assemblies. The brazing process guarantees reliable sealing, uniform heat exchange, structural strength and surface cleanliness.

2. Aerospace Industry

Large aluminum alloy heat exchange structures and high-precision aluminum structural parts, featuring precise dimension, uniform microstructure, superior tightness and reliable performance under extreme environments.

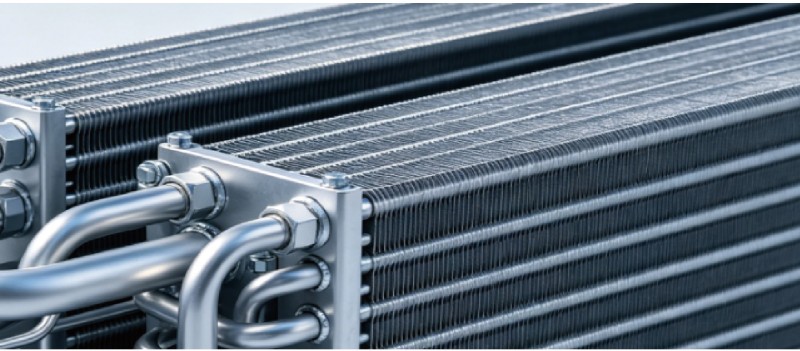

3. Home Appliances

Aluminum heat exchange components for refrigeration systems of air conditioners and refrigerators, achieving zero leakage, high heat exchange efficiency, stable structure and clean appearance.

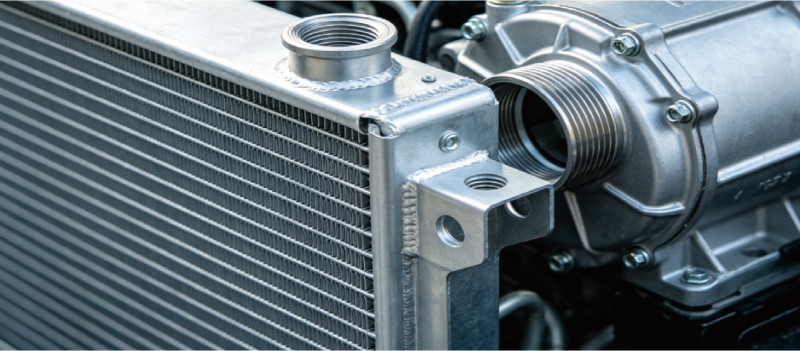

4. Automotive Industry

Aluminum parts for water tanks, condensers, evaporators, heat exchangers and compressors, ensuring sealing strength, heat exchange performance, dimensional accuracy and surface finish.

5. Shipbuilding Industry

Aluminum heat exchangers, sealed cavities and cooling system components with outstanding corrosion resistance, tightness, structural strength and service durability.

Product Specifications

Model	Effective Heating Zone (L×W×H, mm)	Load Capacity (kg)	Max. Temperature (℃)	Temperature Uniformity (℃)	Ultimate Vacuum (Pa)	Pressure Rise Rate (Pa/h)
HZHA-50	600×400×400	150	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-120	1000×600×600	350	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-200	1200×1000×800	400	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-210	1500×800×900	500	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-300	2100×1000×900	2000	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-380	3000×1200×900	2500	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-450	2550×1550×1750	5000	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-480	3500×1000×1000	2500	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-500	3500×1200×1200	3000	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-580	5800×1000×1200	6000	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-600	2750×1550×1900	6000	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-630	3200×1500×1500	3000	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-840	4300×1300×1300	10000	750	Better than ±3	Better than 6×10−4	Better than 0.3
HZHA-900	6500×1300×1700	15000	750	Better than ±3	Better than 3×10−4	Better than 0.16
HZHA-1260	6500×1650×1720	18000	750	Better than ±3	Better than 3×10−4	Better than 0.16
HZHA-1800	8000×1550×1830	20000	750	Better than ±3	Better than 3×10−4	Better than 0.16
HZHA-2200	8500×1650×2300	33000	750	Better than ±3	Better than 3×10−4	Better than 0.16
HZHA-2450	9550×1700×2150	38000	750	Better than ±3	Better than 3×10−4	Better than 0.16

Custom Non-Standard Solutions

Structural Customization

Custom horizontal standard furnaces, flat furnaces and extra-large-size furnace types
Parameter Customization

Flexible adjustment of heating zone dimensions, charging capacity, vacuum level and temperature control zones as required
Process Customization

Optimization of exclusive brazing curves for aluminum alloy heat exchangers and large structural components
Auxiliary System Customization

Automatic feeding system integration, production line integration, overhaul & upgrading of existing furnaces
